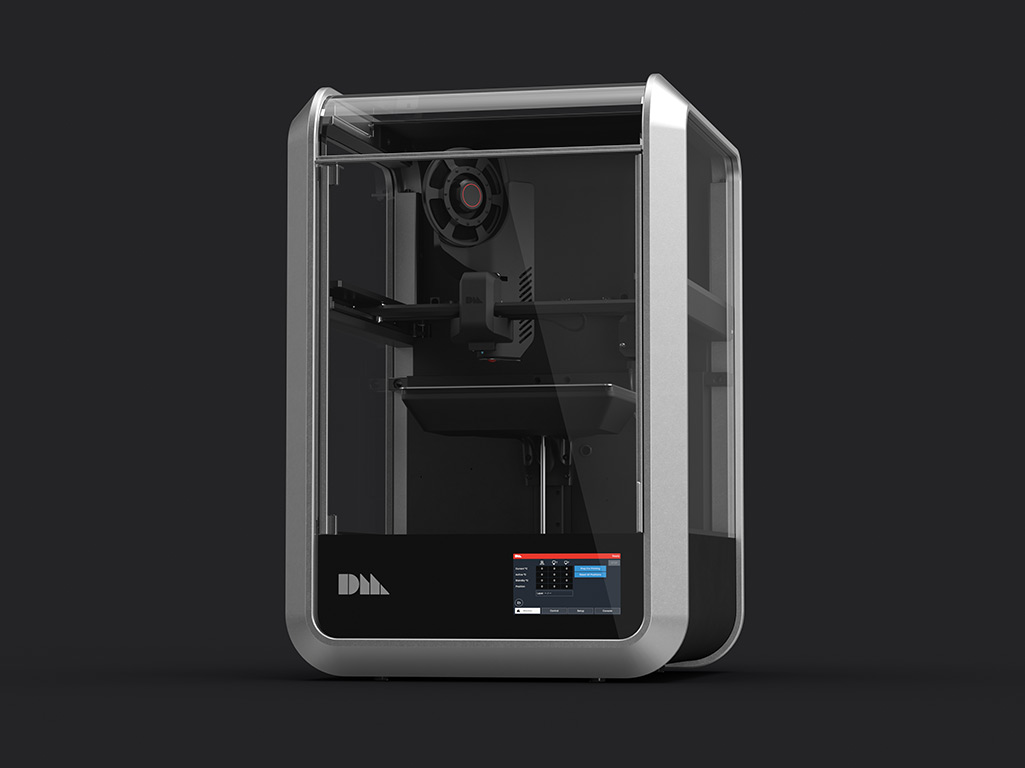

Fiber LT

Print high-strength, ESD-safe, nylon-based continuous fiber parts with exceptional mechanical properties.

Materials List

Material families: Nylon (PA6)
Chopped reinforcement: Carbon Fiber, Fiberglass
Continuous reinforcement: Carbon Fiber, Fiberglass
Continuous fiber porosity: < 5%
Continuous fiber volume fraction: > 50%
ESD compliant materials: Yes (PA6 + CF)
Flame retardant materials: No

Software

Optimized maximum layer reinforcement: Yes
User-defined fiber paths: No
Browser based option: Yes
Security: Single sign on, 2-factor authentication
Advanced printer fleet management: Yes
Available via: Cloud

Hardware

Motion system: Kinematic tool changer expandable up to 4 tools
Standard configuration: 1 uAFP head, 1 FFF head
Min Z layer resolution 50 μm
Print bed: Magnetic
Build volume: 310 x 240 x 270 mm (12.2 x 9.4 x 10.2in)
Printer footprint: 586 x 620 x 863 mm (23 x 24.4 x 34 in)

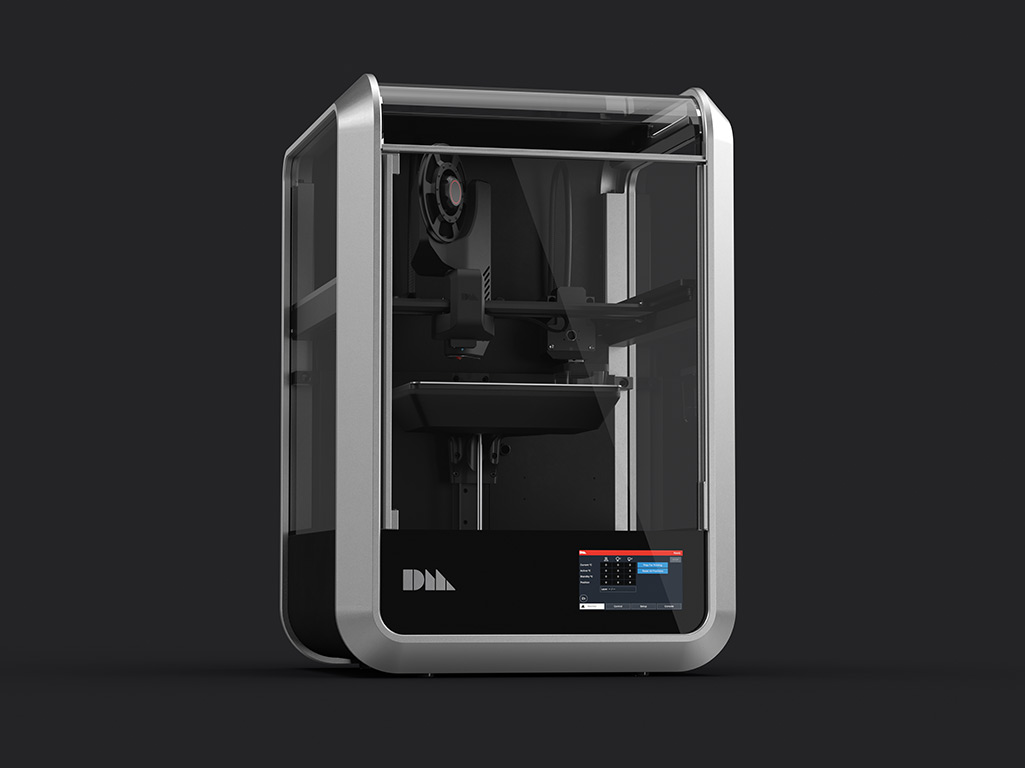

Fiber HT

Print industrial grade, chemical-resistant, flame-retardant, and ESD-safe parts with PEEK-, PEKK-, and nylon-based continuous fiber materials.

Materials List

Material families: Nylon (PA6), PEEK, PEKK
Chopped reinforcement: Carbon Fiber, Fiberglass
Continuous reinforcement: Carbon Fiber, Fiberglass
Continuous fiber porosity: ~ 1% (PEEK,PEKK), < 5% (PA6)
Continuous fiber volume fraction: Up to 60% (PEEK,PEKK), > 50% (PA6)
ESD compliant materials: Yes (PA6 + CF, PEKK + CF)
Flame retardant materials: Yes (PEEK + CF, PEKK + CF)

Software

Optimized maximum layer reinforcement: Yes
User-defined fiber paths: Yes
Browser based option: Yes
Security: Single sign on, 2-factor authentication
Advanced printer fleet management: Yes
Available via: Cloud

Hardware

Motion system: Kinematic tool changer expandable up to 4 tools
Standard configuration: 1 uAFP head, 2 FFF heads
Min Z layer resolution 50 μm
Print bed: Magnetic
Build volume: 310 x 240 x 270 mm (12.2 x 9.4 x 10.2in)
Printer footprint: 586 x 620 x 863 mm (23 x 24.4 x 34 in)
